TSS FUR120 - Small, cost effective 4 port UHF RFID Reader POE Eth / USB
TSS
€399.00 excl. BTW
€482.79 incl. VAT

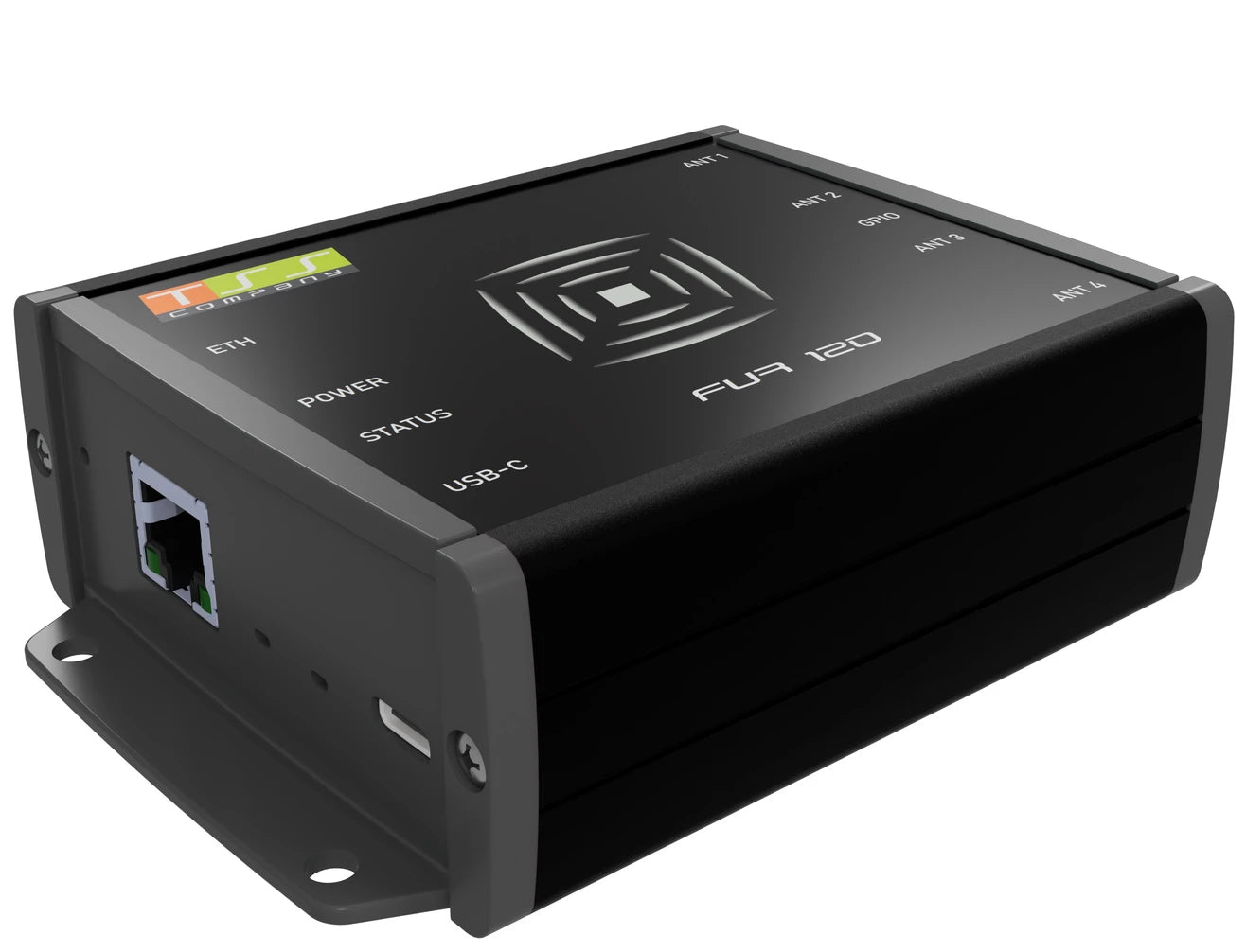

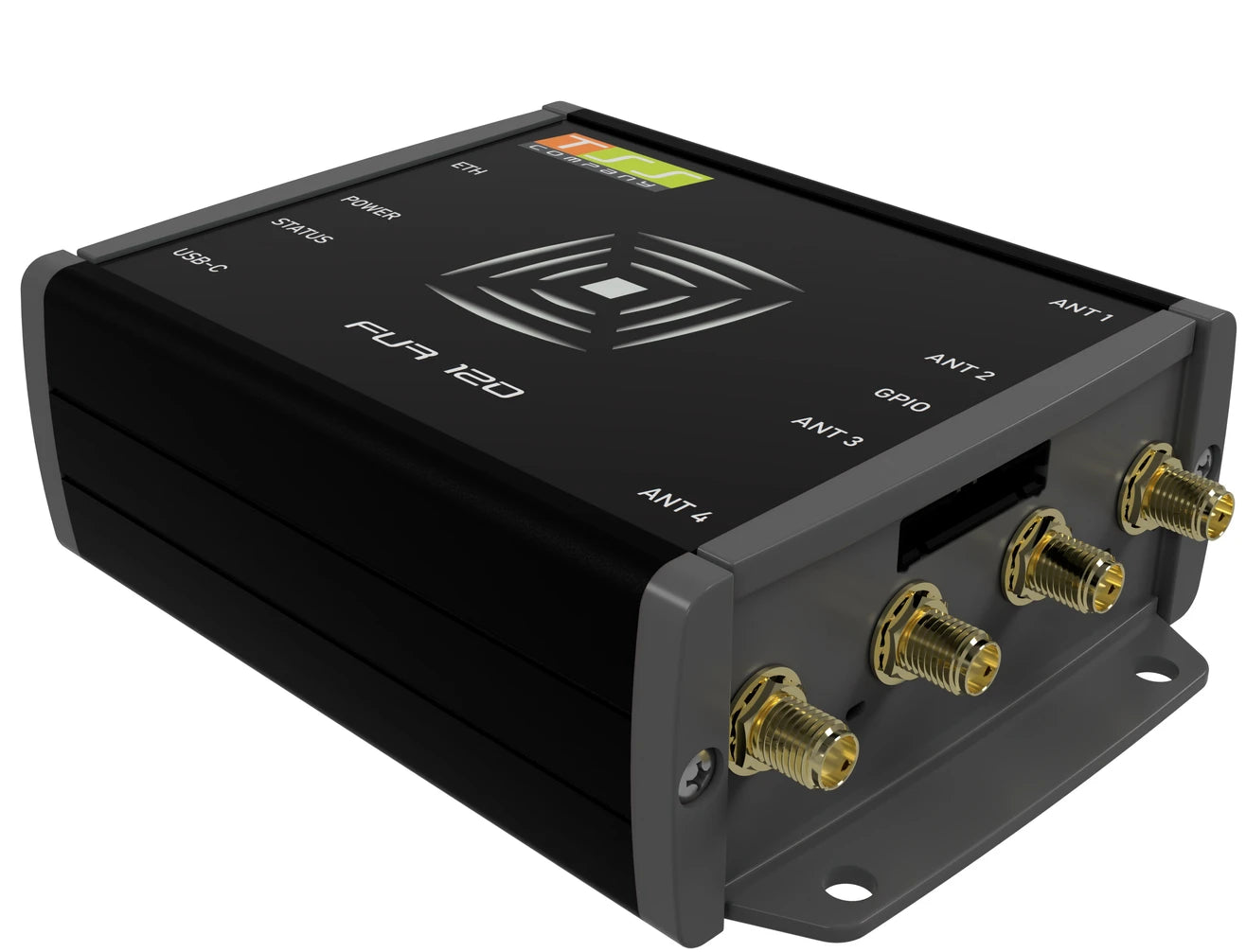

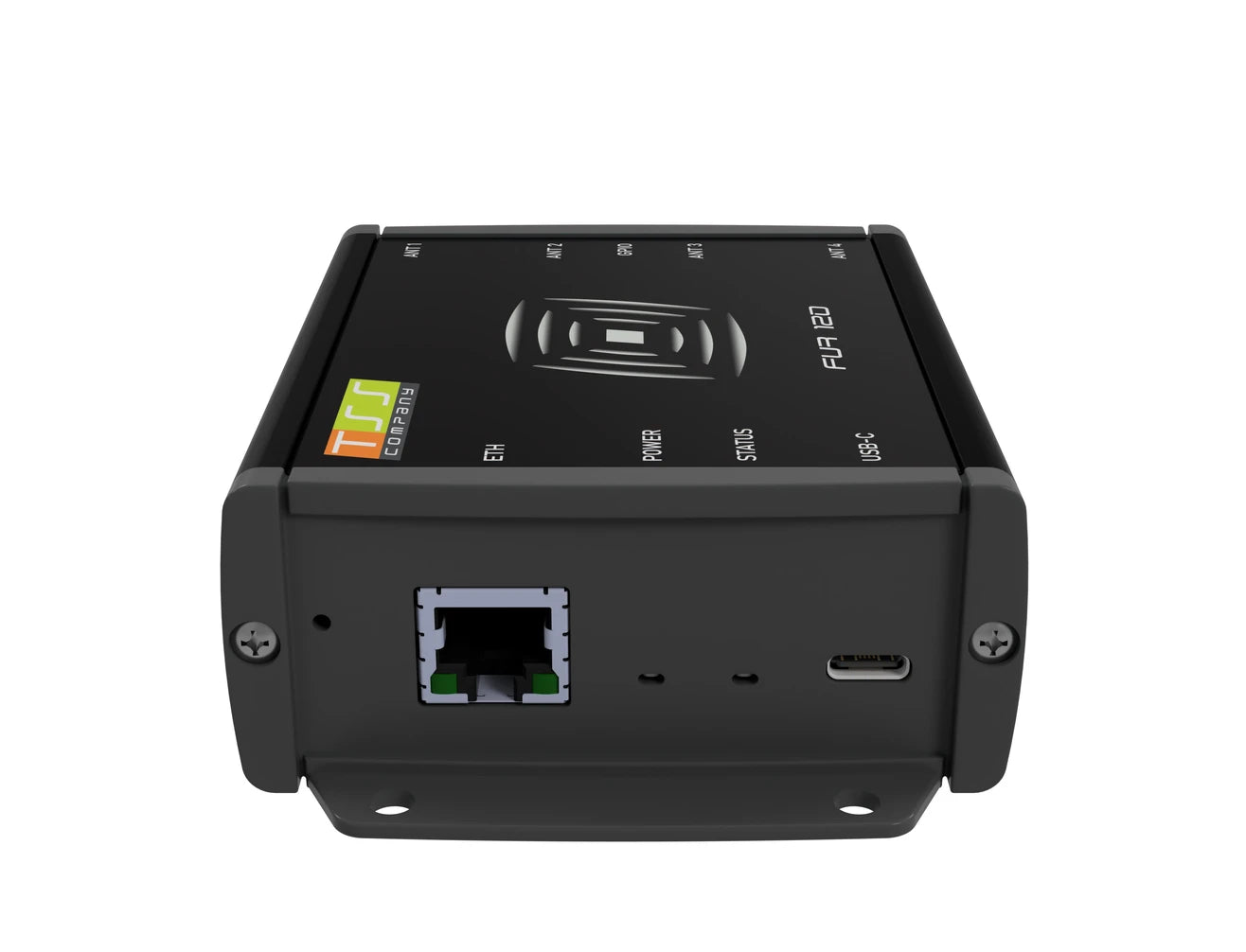

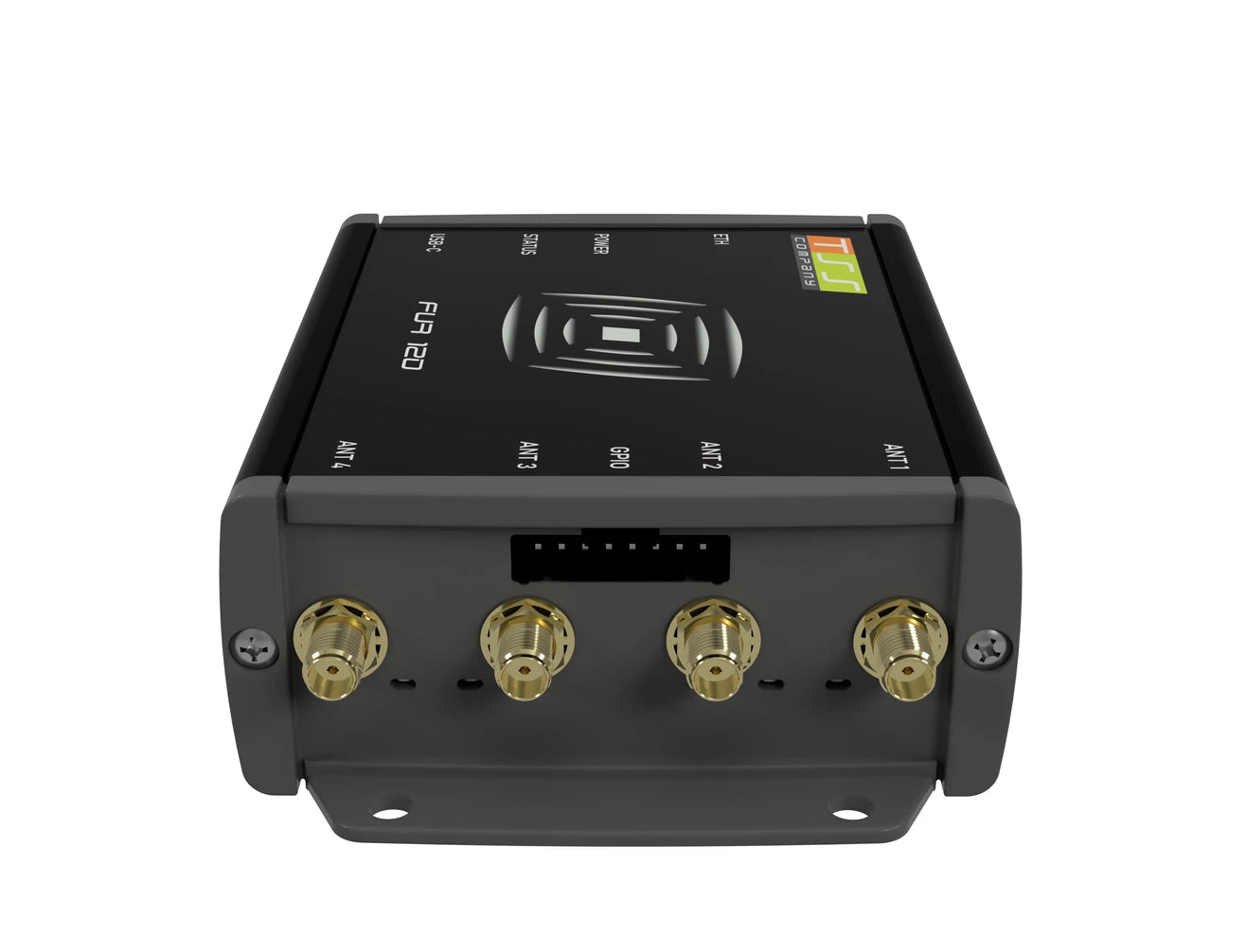

The TSS FUR 120 is a small, low cost 4 port UHF reader for EPCglobal Class 1 Gen 2 (ISO18000-6C) UHF transponders. It can be easily integrated into your application using either Ethernet, or as a USB Serial port via its USB Type C connector.
With the C26007EU antenna the read range is around 120 cm making this an ideal reader for:
-
Smart shelf and cabinets
-
Smart Fitting Room
-
Point-of-sales applications
Frequency: 865 - 868Mhz
Number of Channels: 4 channels
Supported Region: ETSI (Europe) - ETSI EN 302 208
RF Power Output: max. 14dBm
Antenna Connection: 4 x SMA connectors
Tag Communication Rate: 40 kbps
Tag Read Rate: Up to 50 tags/second
Power supply options: PoE IEEE 802.3af Type 1, Class 3 or
5 VDC (Powered by USB interface) Max. 450mA
Dimensions: 120mm L x 85.4mm W x 36.9mm H
